The Different Types of Winches in the Current Market

Types of Winches

Winches are mechanical devices that are used for moving or lifting heavy objects. Its operation is comparable to that of a pulley system. Winches come in handy, especially when your heavy vehicle becomes trapped in mud, sand or water. People nowadays employ winches for a variety of purposes.

If you do heavy lifting, off-roading, or employment that involves regular movement or lifting of big goods, investing in a winch is well worth the time, effort, and money. Winches come in different types. The following are the most common different types of winches currently on the market.

Different Types of Winches

1. Electric Winch

An electric winch uses an electric motor and requires a power supply. The vehicle's battery to which it is coupled and another battery that can run independently of the car battery power electrical winches. This way, activating these types of winches will not affect the operation of any of your vehicle's systems.

It is a good alternative for you if you don't have to work for lengthy periods and don't have to lift big stuff. These types of winches are small and simple to operate. Some electric winches come with a remote control device to help with the winching procedure.

You can utilize this winch even if the engine is dead. However, if this winch is submerged in water, the motors can be damaged. The solution is to use waterproof electric winches. An electric winch is typically found on trucks, jeeps, ATVs, and UTVs. Electrical winches from Warn Industries, Smittybilt, X Bull, and other manufacturers are high quality and affordable.

2. Hydraulic Winch

A hydraulic winch is powered by a hydraulic motor and is connected to the vehicle's engine via a hydraulic pump. These types of winches have a lot of power, and they can work whenever the engine is running, just like mechanical winches.

A hydraulic winch has the unique benefit of operating even when entirely submerged in water. Hydraulic winches have a longer lifespan and are less prone to overheating. The disadvantage of hydraulic systems is that they cannot operate without an engine.

3. Mechanical Drum Winch

Anchoring winches that maintain the rope on the drum are known as drum winches. The engine provides the power for these winch types. Through the use of a turning shaft, the gears in the gearbox send power to the winch. These types of winches have more pulling power than electrical winches, and they can work whether the gear is engaged or not when the engine is running.

The term comes from the winch assembly's form, which has the rope coiled around a spool-like holder. The advantages of this type of winch include a quick load drop and retrieval. They're simple to set up and may be used with nearly any rope or chain. Mechanical drum style winches are also useful for anchoring purposes. They're most commonly found on ships. However, it is considerably easier to put on a car when it comes to installing.

4. Hand-operated Winch

Hand winches, also known as mechanical hand-operated winches, are manual and suitable for lighter-weight applications. A handle serves as a lever arm, while the barrel axis serves as the fulcrum. Hand winches are often employed in the arbor business for work in damp circumstances and in situations where there are no power outlets, like woodland areas. However, you should avoid using wooden winches on heavy objects.

5. Mechanical Portable Winch

A drum winch is connected to a chainsaw motor to create motive force in this sort of hand-made winch. The winch is self-contained and operates independently of the vehicle to which it is connected. You can use these winches in almost any place.

6. Lever Winch

Lever winches are different from spool winches in that they have self-gripping jaws rather than spools. They use self-gripping jaws to transport wire rope or cable through the winch. The power behind lever winches comes from moving a handle back and forth. As a result, they enable a single person to carry several tons of material. Griphoist and Tirfor are two brands of lever winch.

7. Snubbing Winch

It is a vertical spool winch with a ratchet mechanism, similar to a regular winch. However, it does not have a crank handle or any other form of drive. Instead, the line is reeled and tightened with a tail line. As a result, the winch takes the load with little tension after it's entirely pulled in.

A regulated pressure relief is also included with the snubbing winch. A ratcheted spool is used to manage stress. It also aids in the reduction of tension. This type of winch is commonly used to control sheets and other lines on dinghies and small sailing boats.

8. Wake-skate Winch

Watersports enthusiasts frequently employ wake-skate winches. A wake-skate winch consists of a spool, an engine, rope, handles, a frame, and other simple transmissions. Using this winch, a person can swim or walk away. It can pull a person at speeds ranging from 15 to 25 miles per hour.

The winch can be mounted on the vehicle's rear, staked into the ground, or tied to a tree. In cities, wake-skate winches are primarily utilized by snowboarders and skiers.

9. Air Winch

An air winch is also known as an air tugger or an air hoist. It's essentially a winch that's powered by air. It's a common tool for suspending or lifting items. However, electric, hydraulic, and diesel winches are less versatile, safer, and durable than air winches.

Numerous winch businesses widely recommend air-powered winches because of their longevity, safety, and versatility. Companies that work in development or large-scale construction heavily rely on air winches.

10. Glider Winch

A glider or plane is launched using a glider winch. This winch is usually attached to a big truck or a trailer. It is less expensive than aerotowing and is widely utilized among European gliding clubs. LPG, diesel, or petroleum are used to power them.

Glider winches with hydraulic or electric engines are also available, but they are not extensively used. This winch can pull a wire cable attached to the glider that is between 1000 and 1600 meters long. You can release the line at a height of 1,300 to 2,200 feet after a short, difficult climb.

11. Capstan Winch

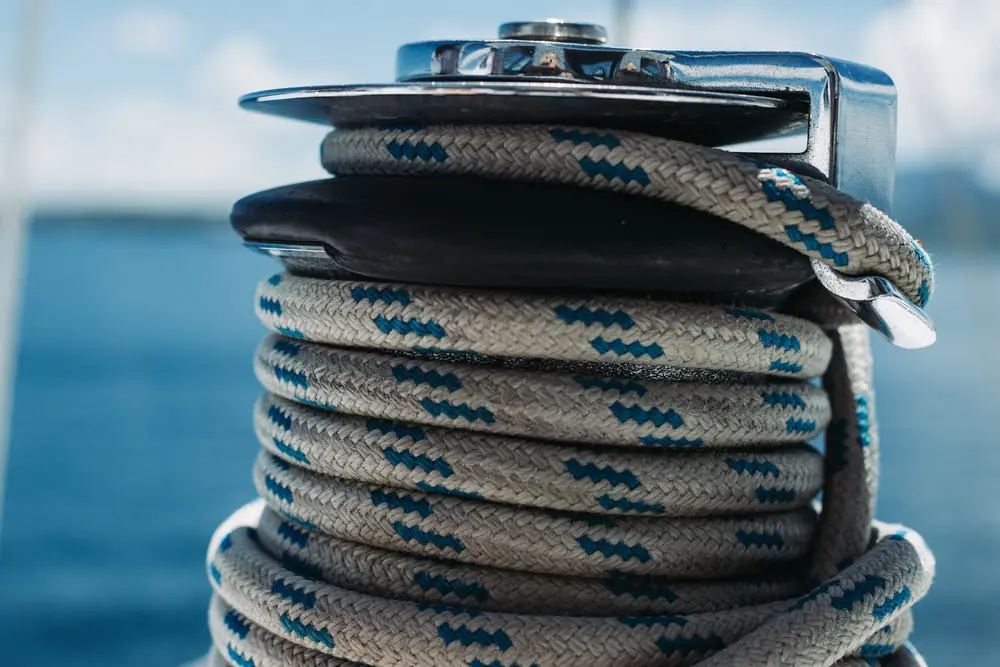

This type of winch is also known as a vertical-axle winch. It is a rotating equipment that aids in pulling weight from vessels. Capstan winches are made specifically for marine industries or sailing ships. These winches get their power from the engine's crankshaft. The dog clutch connects to the crankshaft's pulley, drawing power.

A mechanical capstan winch operates when the engine is operating. The winch assembly consists of one extended section around which the rope is coiled rather than the spool-like construction of mechanical drum winches. Sailors in sailing ships use the capstan winch to provide force to ropes and cables. The capstan winch and the windlass winch have a lot in common.

12. Mooring Winch

This type of winch keeps a ship from drifting away from the port. A mooring winch is a gadget that pulls cables/ropes using barrels. Compared to hydraulic or electric mooring winches, the rated payload capacity is lower. As a result, they're not frequently used for docking huge ships.

13. Hybrid Winch

Spare parts are used to construct hybrid winches. The vehicle owner locates an old winch and connects it to the car, then drives the winch using a hydraulic pump and engine. This style of winch is inexpensive, powerful, and effective.

Winch Motors

1. Permanent Magnet Motors

An armature is a series of coils found inside conventional winch motors. Another set of field coils or permanent magnets can be found inside this armature. Magnets rotate the armature and run the engine in permanent magnet motors. Permanent magnet motors put a little load on the car battery, but they readily overheat, causing the winch motor to slow down. As a result, they can't be utilized to lift heavy objects.

2. Series Wound Motors

The field coils are a group of coils inside the armature of series wound motors. The armature is spun by these field coils attached to it. The magnetic field is progressively formed as the field coils spin and the armature spins. Series wound motors require more current than permanent magnet motors because of this added effort. However, they do not heat up as quickly as permanent magnet motors do.

Types of Winch Gear

1. Planetary Gears

The most popular and cost-effective type of winch gear is planetary gearing. The name is derived from the design, which resembles planets orbiting a sun. A compact planetary gear and a coaxial shaft are used in the winch, allowing for significant reductions in a little space. This device is designed to handle heavy loads while maintaining smooth operation and providing strong torque load resistance. With a transfer efficiency of 65%, they are halfway between worm and spur gear winch types in terms of drivetrain friction and amp draw.

2. Worm Gears

Worm Gearing uses right-angle shafting, two gears, and a self-locking mechanism to achieve high ratios. A worm engages a perpendicular worm wheel in the apparatus. Fixed bearings limit the worm's movement, and it can only rotate without moving in an axial direction. When the worm's screw thread engages the teeth on the worm wheel, the worm pulls or pushes the worm wheel, causing it to rotate. Worm gears are noted for their inexhaustible endurance, great reliability, and 35-40% transfer efficiency. When a high-speed reduction ratio is required, such as in electric winches and capstans, they are the ideal choice.

3. Spur Gears

Spur gears are two wheel-shaped gears, one large and one small. The smaller gear is attached to the motor and rotates the larger one. With a transfer efficiency of 75%, Spur gears are the most efficient type of winch gear. Spur gearing has less friction and is more efficient than planetary and worm gearing, but it necessitates a brake mechanism.
